Abyzz AFC150

Description

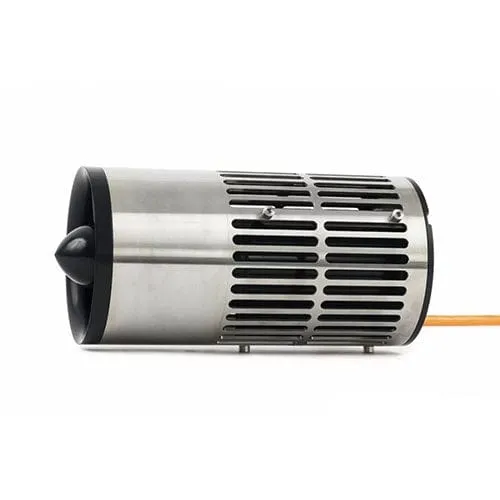

Abyzz AFC150IPU compact – Adjustable flow pump 150W

The innovative Abyzz Flow Cannon AFC150 „compact“ with its high-end design including a titanium rotor unit and titanium housing consists of the pump itself and a powerful and programmable driver. Containing a very energy efficient motor and providing the exact adjustment for your application, it offers a very energy-saving solution.

The integrated bearing flushing provides optimum protection against calcification and, in conjunction with the silicon carbide bearings and special hard metal shaft, ensures low-maintenance operation.

All metal parts are made out of titanium grade 2 and other parts are made out of high quality plastics. This composition ensures a long lifetime, thus granting highest sustainability and lowest carbon footprint. Several mounting options are offered to suit any needs and due to many available mounting points, even a customer specific mounting can be done very easily. The special prop design and a well designed hydraulic lets the pump operate with almost no noise or vibration. The integrated flow straightener provides a laminar and powerful water movement. Easy programming (as in any Abyzz pump) and the possibility to link to external controllers offers a wide field of application.

The materials used are designed to have a long lifetime and meet the highest requirements and quality standards. This product is developed and manufactured in Germany by venotec.

Special features

• Variable speed range (70 – 100%)

• CW and CCW operation

• Precise speed adjustment in steps of 0.1%

• Integrated programming to generate waves,

  ursts and random flow patterns with additional BOOSTMODE to override actual programming (MCFS – Menu Controlled Flow Sequencer)

• SELF – Safety Extra Low Voltage (12V motor supply)

• Comprehensive safety functions, such as dry run warning, temperature alert, overcurrent protection, speed zero alert

• Soft startup and dynamic control

• Auxillary port for peripheral devices (e.g. interfacing to external controllers)

• High quality IP65 motor cable connector

• Low noise operation

• Multicolor background LC display

• Splashwaterproof driver (IP65)

• Wide range input with active power factor correction

• Optimized heat sink design

 Applications

• Freshwater and saltwater aquaristics

• Creeks

• Water features

• Commercial applications

Technical data

Mounting only submersed, minimum submersion depth 0,4m.

• Flow (nominal): 54.000 l/h

• Flow (max.): 60.000 l/h

• Pump ambient temp.: 1°C - 50°C

• Driver ambient temp.: 1°C - 30°C (without additional cooling)

• Max. discharge speed: 4 m/s

• Power consumption: 4-150W

• Operating voltage: 100-240V

• Operating frequency: 50-60Hz

• Maximum immersion depth: 2,5m

• Cable length (pump): 4m or 7m (at additional cost)

Delivery

• Abyzz AFC150 pump and IPU driver (splashwaterproof)

• Power cable and connection cable

Mounting material available in two versions:

Abyzz AFC150 Magnetic Holder 15mm and 15-25mm

Abyzz AFC150 Pipe Clamp 40mm

Additional information

Dimension: 470 × 270 × 310 mm

Guarantee

The processed materials are designed for a long service life and meet the highest requirements and quality standards. All Abyzz products are developed and produced in Germany. Each Abyzz pump is fully tested prior to shipping. So we can ensure you get only the perfect product.

All Abyzz pumps come with a 10-year lifetime warranty after registration – at no extra cost, of course!
