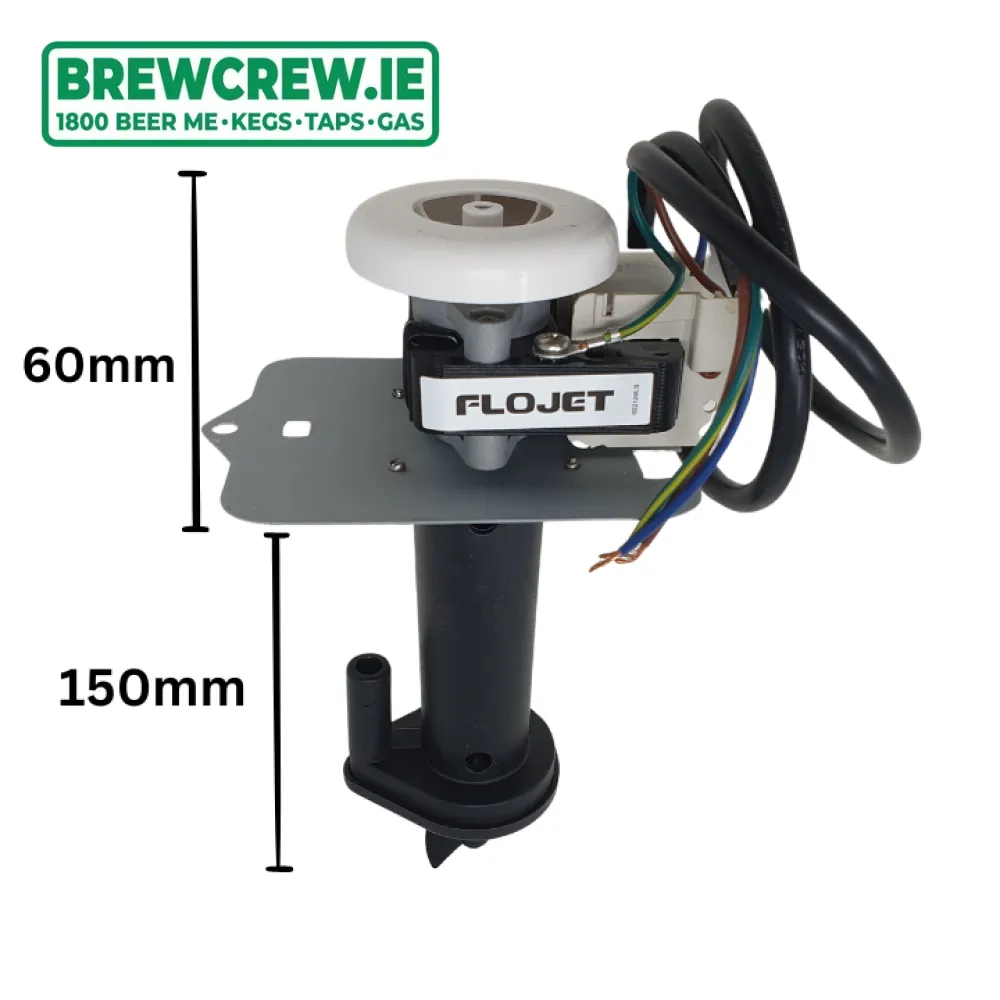

HEIGHT MEASURMENTS (Check your cooler / Faulty Pump for Compatability)

 - ABOVE PLATE = allow for at least 60mm

 - BELOW PLATE = 150mm

Need a Hand? Let Us Install This Part For You:

Disclaimer: We have a NO RETURNS policy on all cooler parts

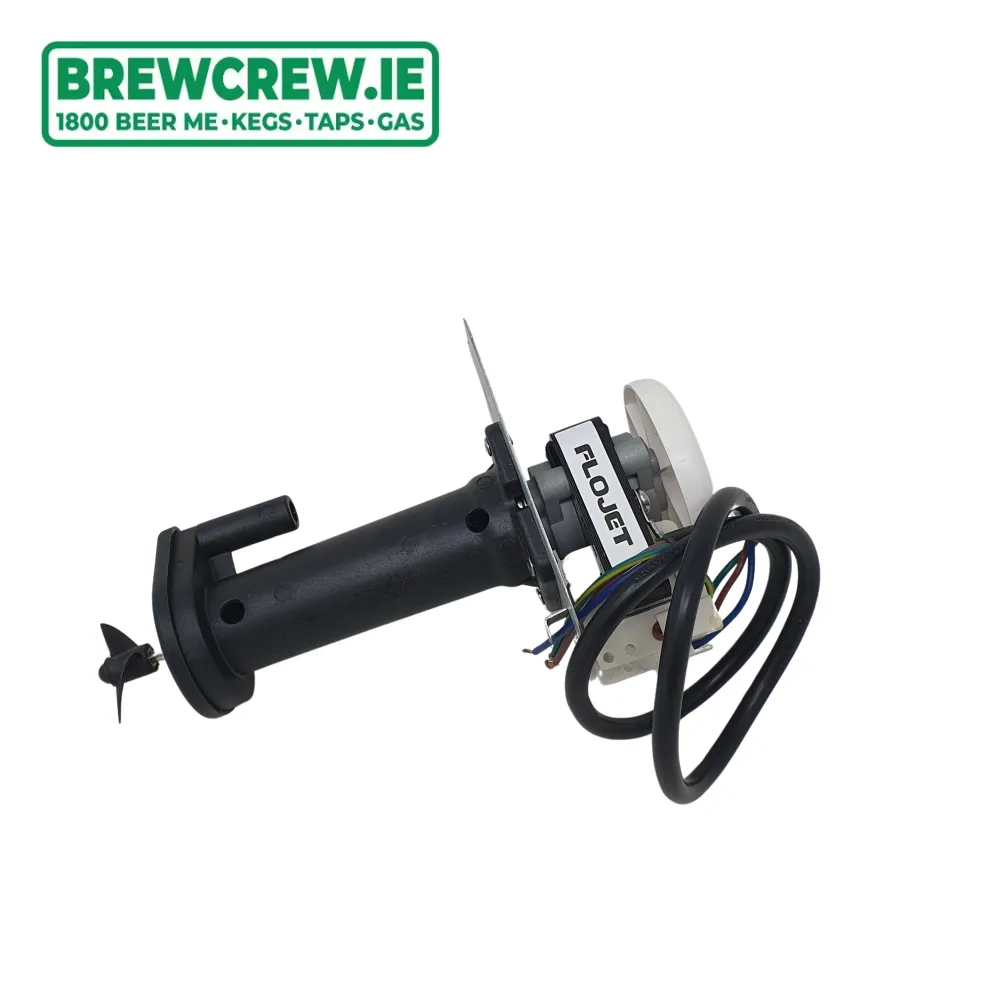

PUMP0110S

Part No: 083903

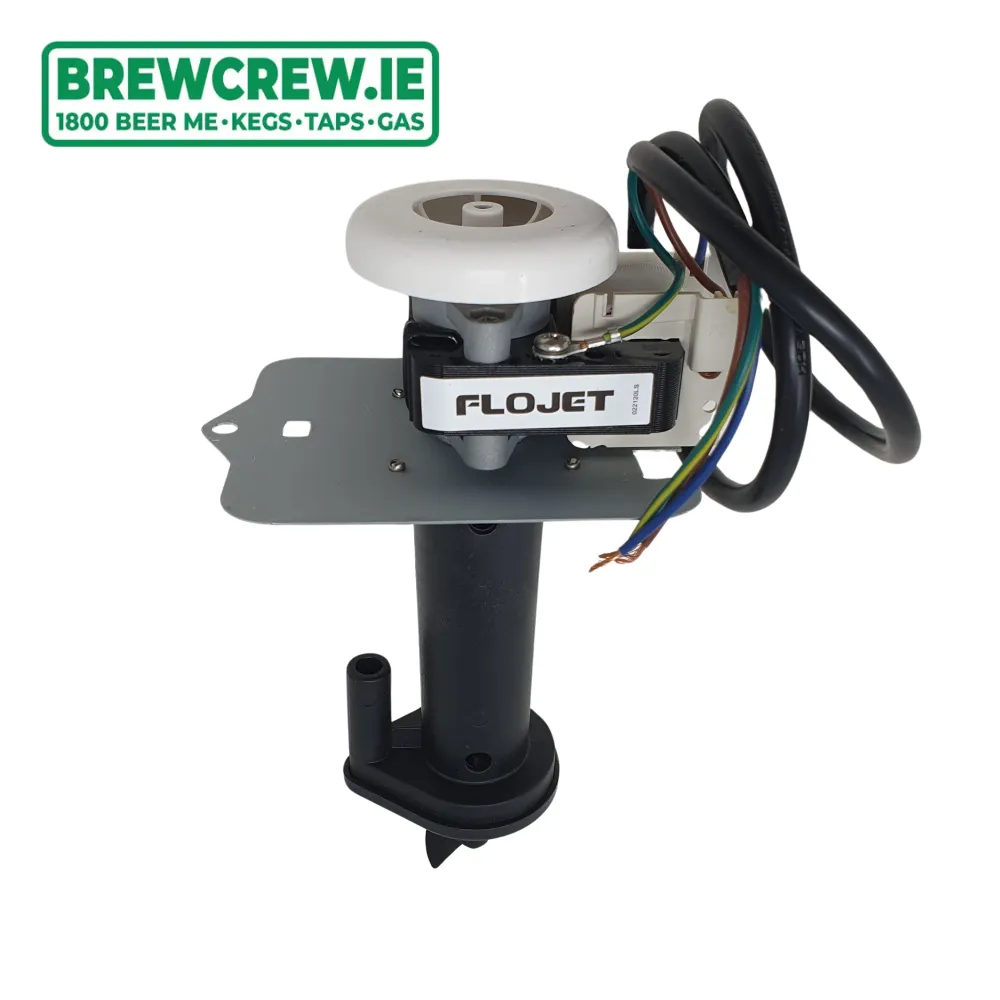

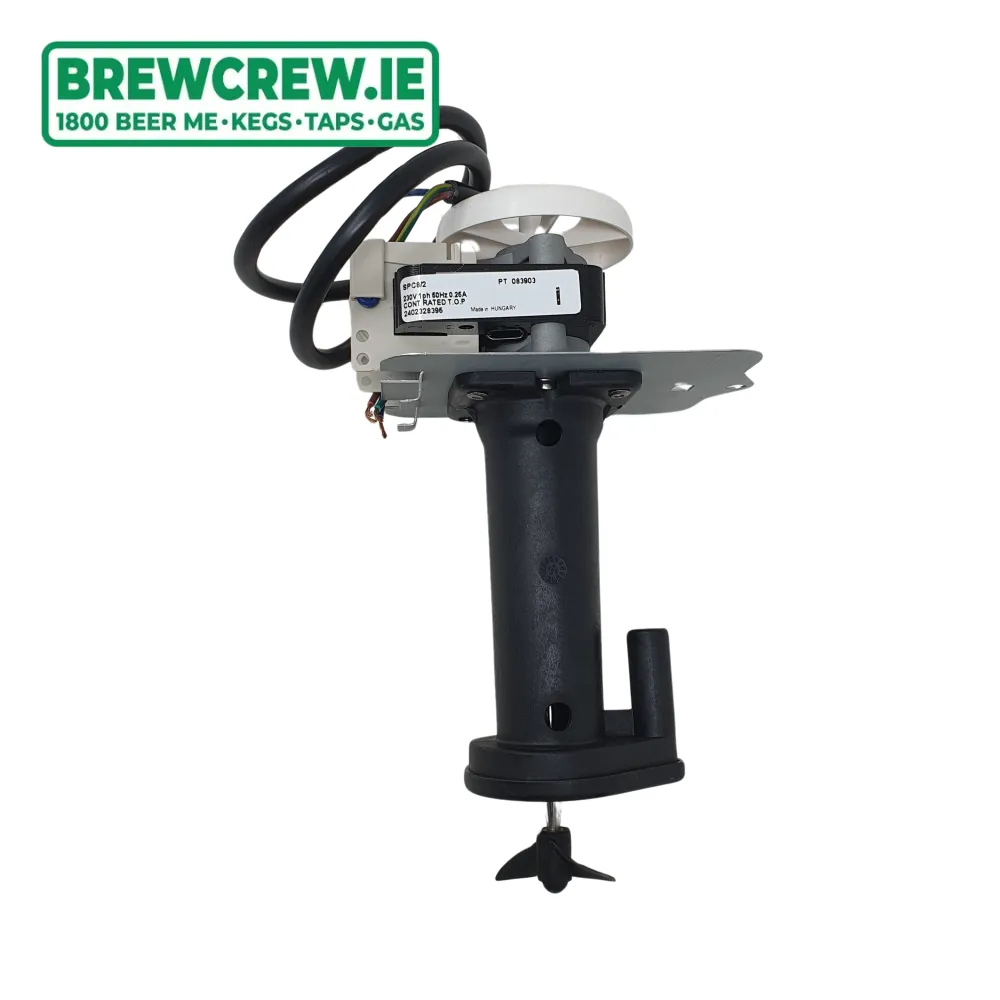

Model: SPC8/2

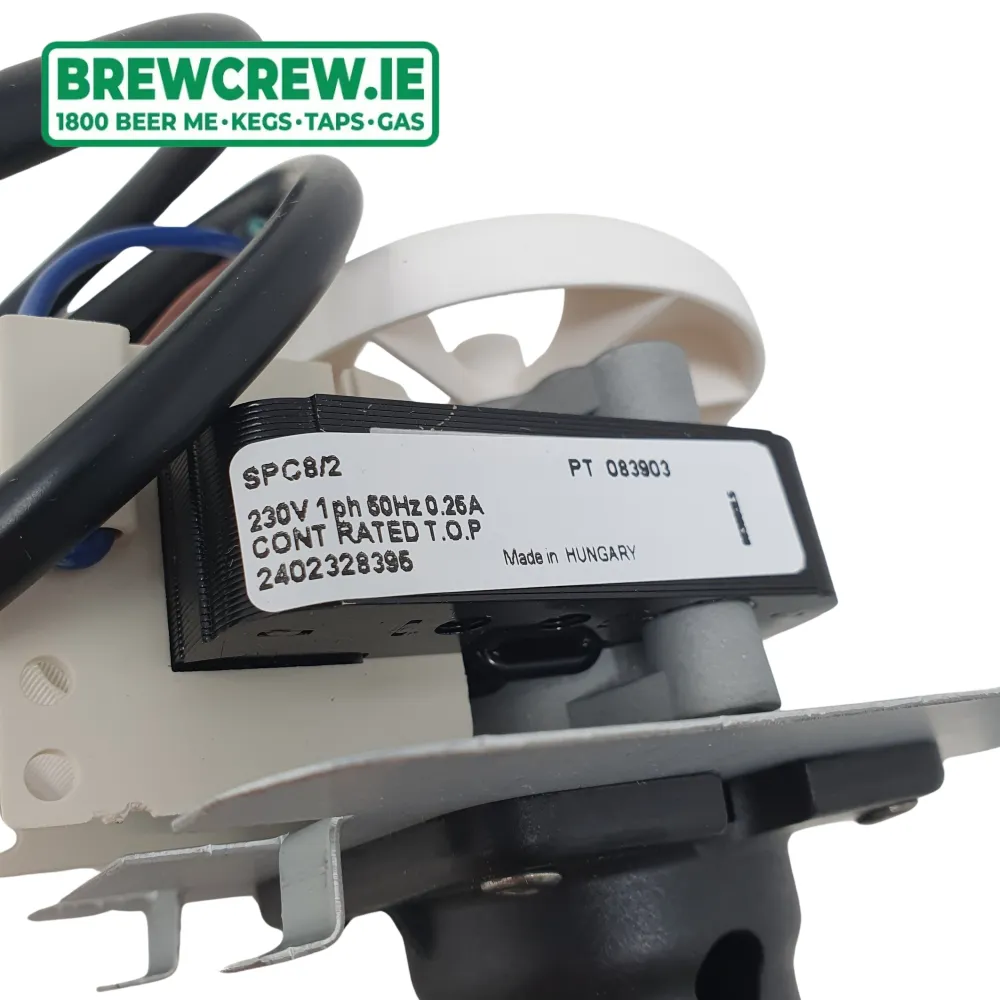

Volts: 230v 1ph 50Hz 0.25A

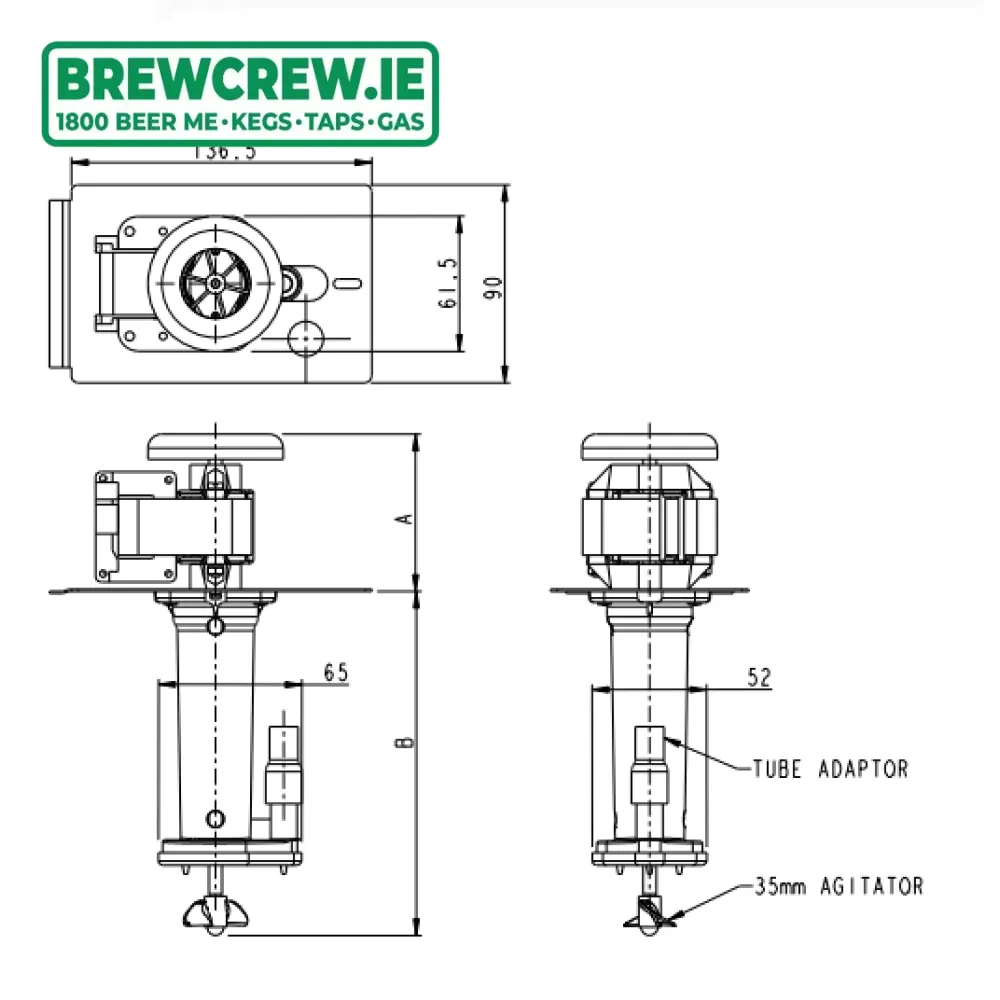

Make sure to cross-reference the relevant measurements of your cooler/pump with the information below and in the images - to ensure that the FloJet SPC8/2 is right for you!

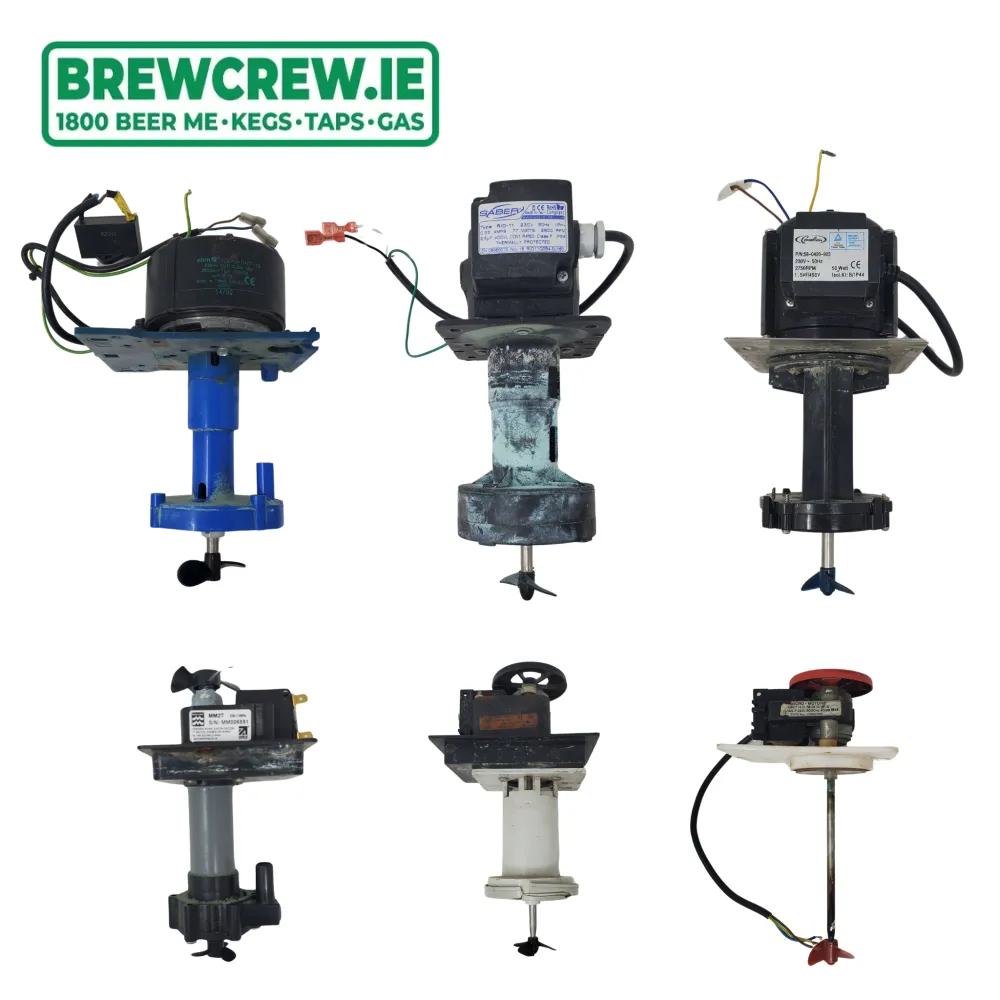

See Image 7 for some common examples of pumps we have swapped out in the past - Their Factory Specifications are as follows:

Top Row (left to right):

• EBM - M2J042-DA07-19 (230v~ 50Hz 0.28A 38W)

 - ABOVE PLATE = 75mm
 - BELOW PLATE = 145mm

• SABER Type RIO-11 (230V 50HZ) Thermally Protected

 - ABOVE PLATE = 76mm
 - BELOW PLATE = 167mm

• CORNELIUS P/N: 58-0420-603 (230V~ 50Hz) 2750 RPM 50 Watt

 - ABOVE PLATE = 86mm
 - BELOW PLATE = 148mm

Bottom Row (left to right)

• MARCH MAY MM2T  (230-1-50Hz) / 230v 50Hz

 - ABOVE PLATE = 56mm
 - BELOW PLATE = 127mm

• MICRO MOTORS MM1043/E - 38/01 - 202 688 (230V 50Hz) TYPE: 20442226

 - ABOVE PLATE = 63mm
 - BELOW PLATE = 155mm

• MICRO MOTORS MM0714/H - 59 0410 - 181/6 (230V 50/60 Hz 40/98) TYPE No. 22332232

 - ABOVE PLATE = 54mm
 - BELOW PLATE = 145mm

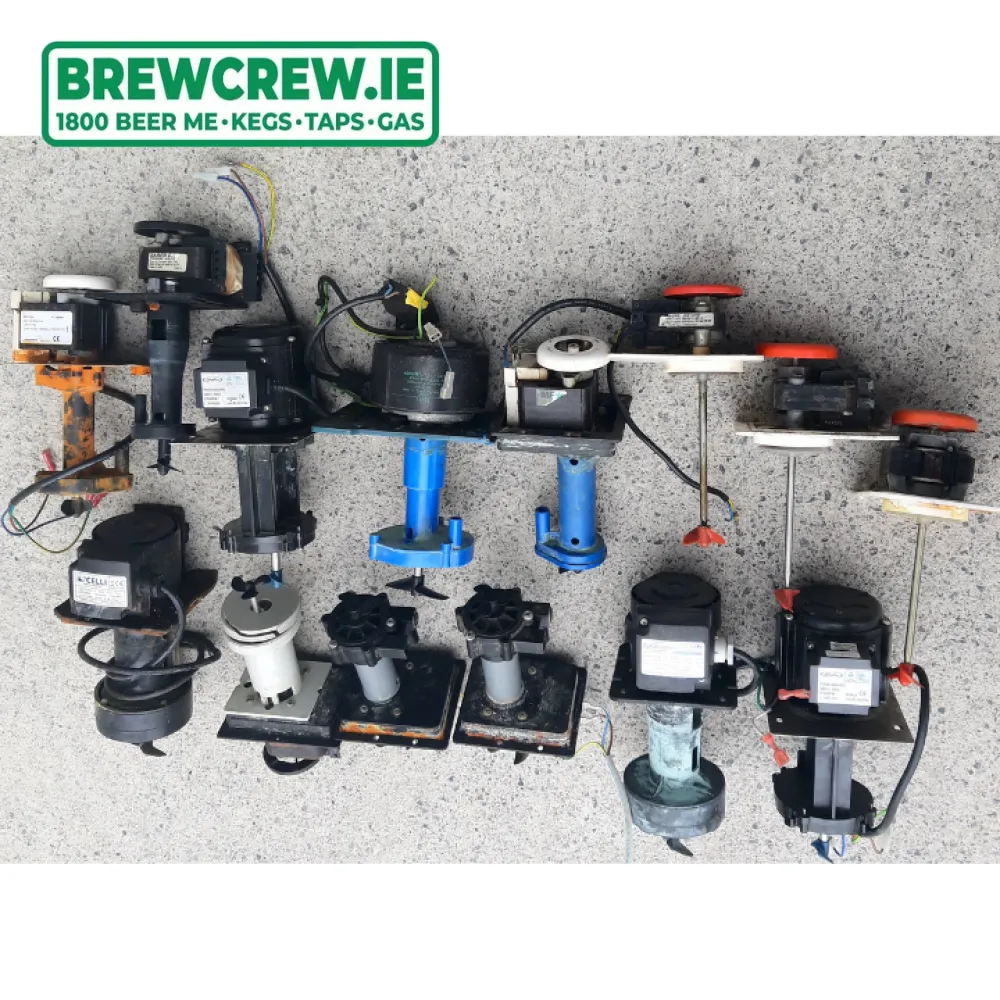

Some Others Include:

• FLOJET SPC12/4 - PT083969 - 30V 1ph 5Hz 0.4A

 - ABOVE PLATE = 77mm
 - BELOW PLATE = 135mm

• SABER S.R.L Pordenone - Type: CLT-2 - 230V 50Hz 1PH - 2550 RPM 0,23 AMP 28 Watt - Class. F IP00

 - ABOVE PLATE = 62mm
 - BELOW PLATE = 147mm

• CelliType RIO-11 (230V 50HZ) Thermally Protected - 230v 50Hz 1PH-0,33AMPS 79 Watts 2780RPM

 - ABOVE PLATE = 77mm
 - BELOW PLATE = 169mm

Flojet SPC8/2 Notes From The Manufacturer:

PRINCIPAL APPLICATIONS

Designed for continuous operation in, chillers, coolers, vending and general water applications

SPC pumps are fitted to python systems to provide the optimum cooling rate for soft drinks, beers and wines

WETTED MATERIALS

Stainless steel mounting plate • TPE Impeller • ABS Column/Pump Body • Stainless steel shaft • Nylon Agitator

FEATURES

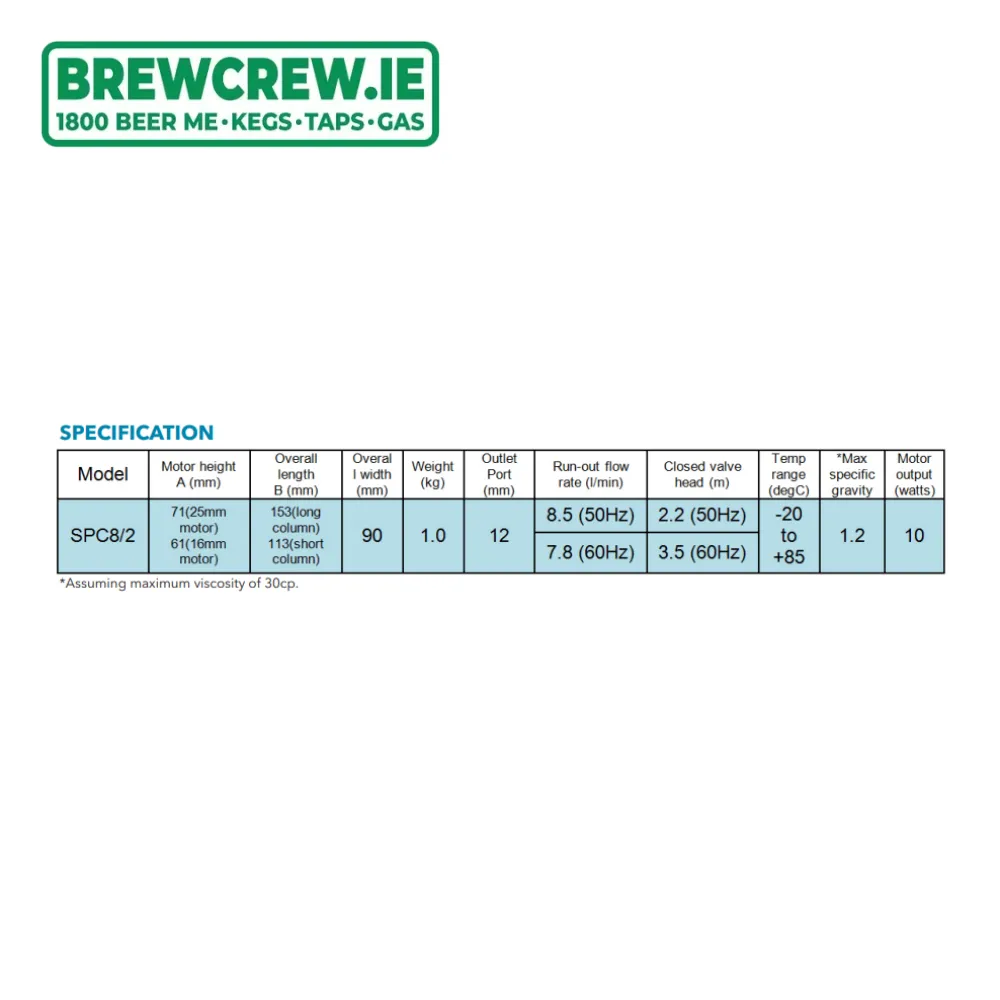

Up to 8 litres/minute, Up to 2 metres head • Low maintenance and long life • Agitator propeller fitted as standard
