- The Vanford A features Shimano's lightweight Ci4 carbon body, ensuring rigidity while reducing size and weight. While internally, the MGL Rotor powers the Vanford. With 48% less rotational inertia than a traditional rotor, the MGL Rotor offers precision and balance for lighter rotations and increased sensitivity.
- Long Stroke Spool technology to increase casting distance while producing a smoother line lay on the spool during retrieval.
- Hagane gearing, SilentDrive, MicroModule Gear II, and X-Protect.
- Available in a wide range of sizes, from an ultra-light 500 size perfect for trout, panfish, or ice fishing all the way up to a 5000 suitable for saltwater flats fishing.

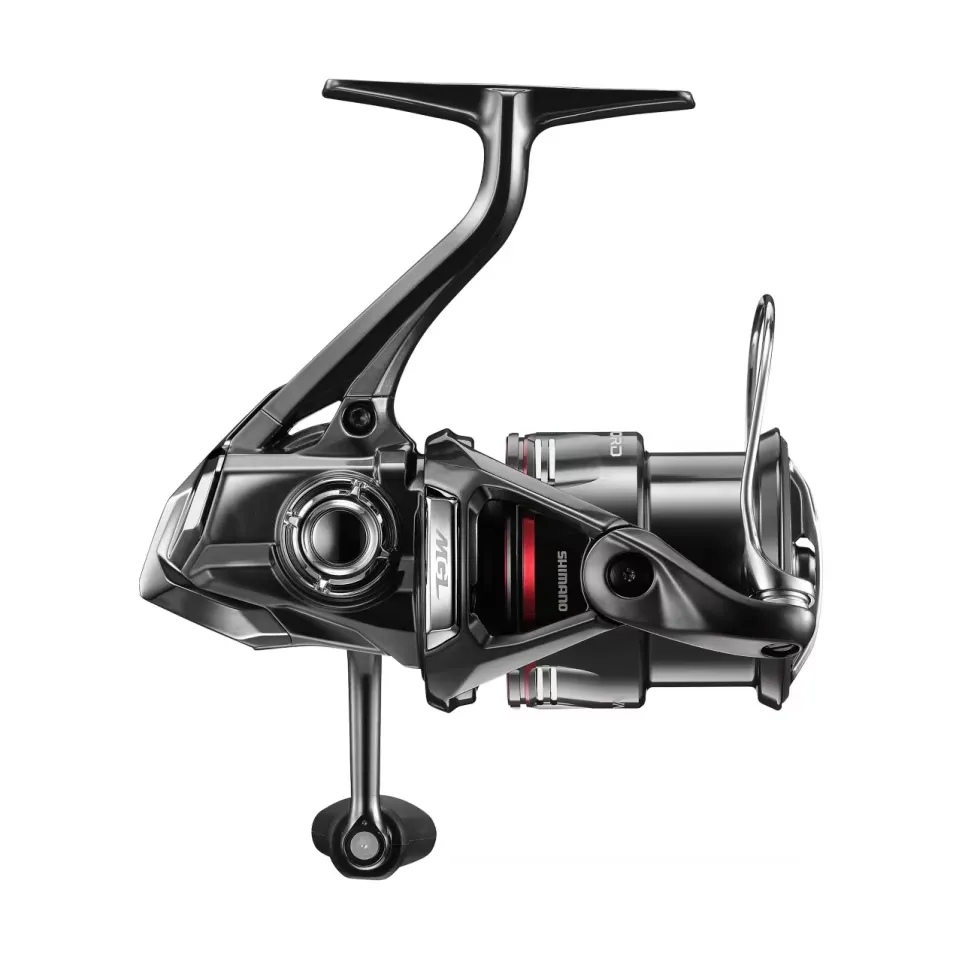

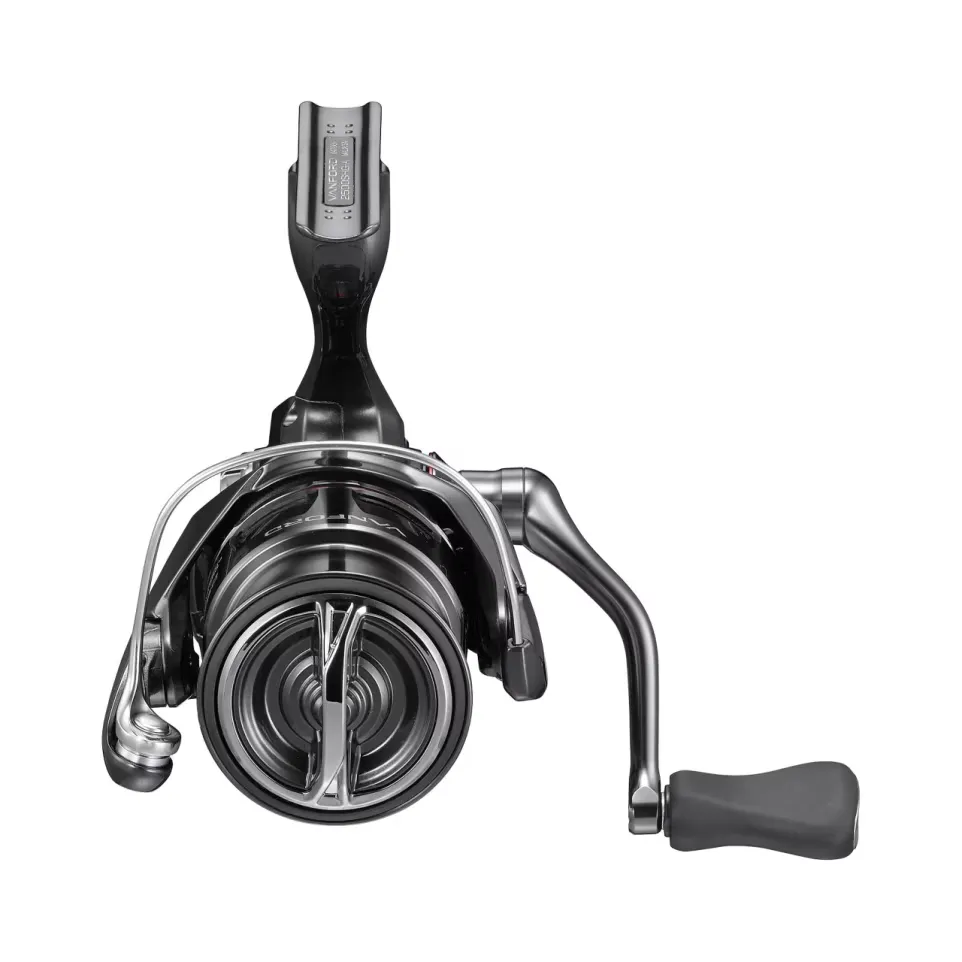

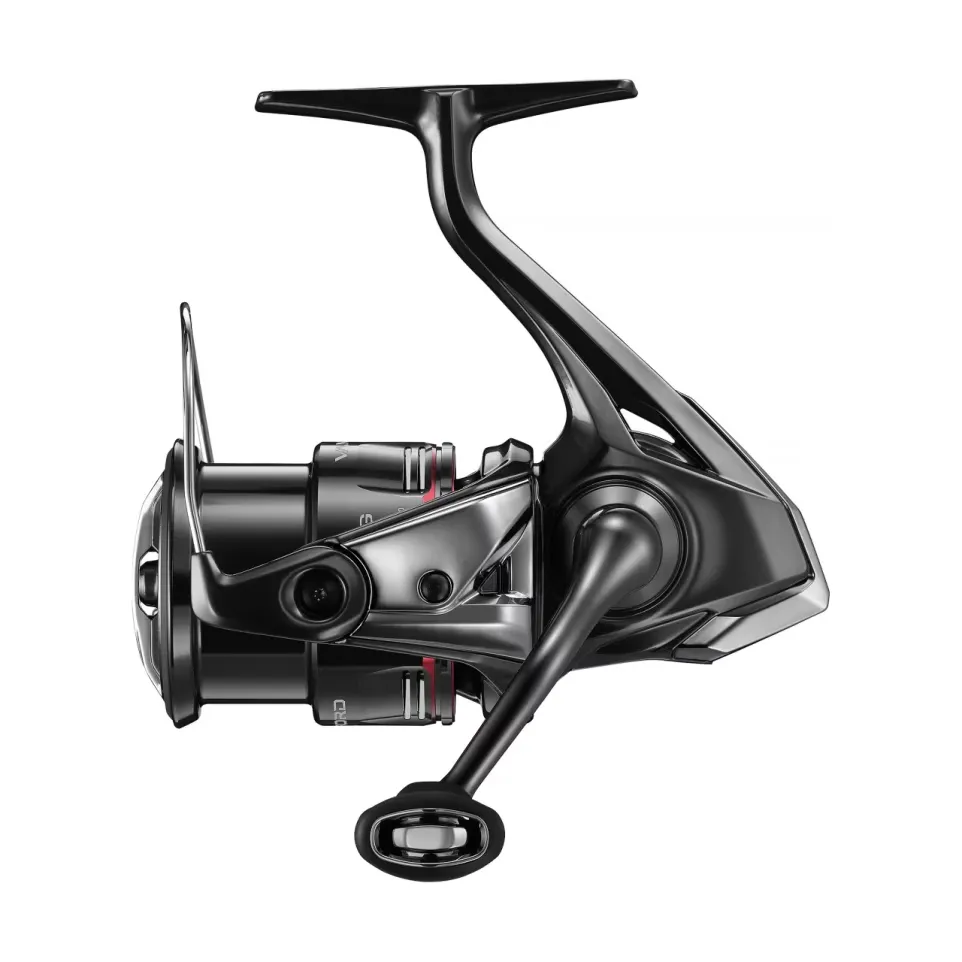

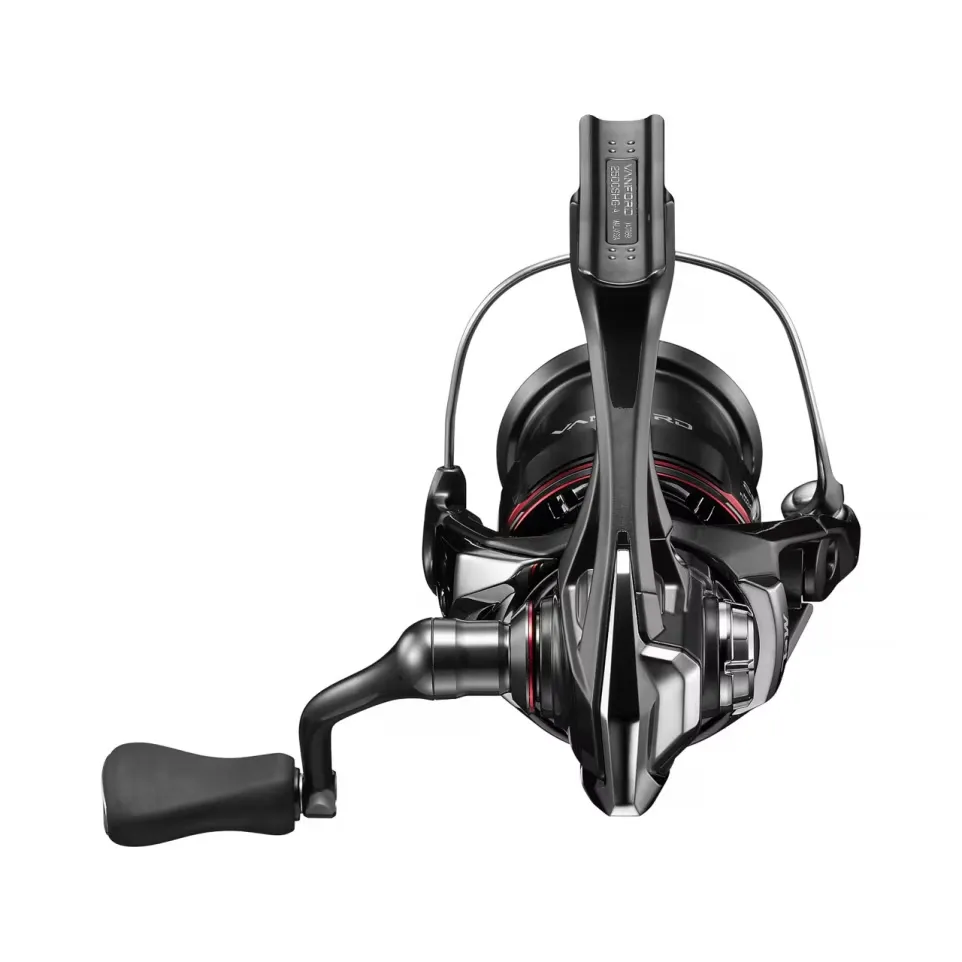

The Shimano Vanford Spinning Reels are a new line-up of high-performance, lightweight spinning reels that replace the recently discontinued Stradic CI4 . The Vanford is built around the same CI4 frame as its predecessor but now uses a MagnumLite (MGL) spool for lower rotational spool inertia, which in turn offers an incredibly quick response in critical situations like hook setting and tense fish-fights.
The reel also has Long Stroke Spool technology to increase casting distance while producing a smoother line lay on the spool during retrieval. SilentDrive and MicroModule Gear II technologies combine to produce a new level of smooth rotational performance while reducing overall reel vibration. X-Protect technology and water-channeling construction enhance Vanford’s water resistance and overall durability - making it suitable for inshore saltwater and estuary fishing.
Available in a wide range of sizes, from an ultra-light 500 size perfect for trout, panfish, or ice fishing all the way up to a 5000 suitable for saltwater flats fishing.
SKU NUMBER | GEAR RATIO | PRACTICAL USE FORCE (KG) | MAXIMUM DRAG FORCE(KG) | WEIGHT (G) | SPOOL RING DIA(MM) / SPOOL STROKE DIA(MM) | LINE RETRIEVE / CRANK (CM) | HANDLE LENGTH (MM) | BEARINGS |
500 | 5.6 | 1 | 2.5 | 140 | 39.5/8 | 69 | 40 | 7/1 |
1000 | 5.1 | 2 | 3 | 150 | 40/13.5 | 64 | 40 | 7/1 |
C2000HG | 6.1 | 2 | 3 | 150 | 43/13.5 | 82 | 45 | 7/1 |
2500HG | 6 | 3.5 | 9 | 180 | 47/17 | 89 | 55 | 7/1 |
C3000XG | 6.4 | 3.5 | 9 | 180 | 47/17 | 94 | 55 | 7/1 |
4000XG | 6.2 | 6 | 11 | 215 | 52/19 | 101 | 57 | 7/1 |
C5000XG | 6.2 | 6 | 11 | 220 | 52/19 | 101 | 57 | 7/1 |
